Last week we finished static systems, so now you might be wondering what comes next?

In this newsletter, I want to give an overview of structural engineering. We want to connect the dots between engineering fundamentals like static systems and structural design (how you end up with a timber beam of cross-section 150x300mm).

This bigger picture is what I missed when I was still at university. I didn’t understand why I had to calculate the bending moment of a simply supported beam or the moment of inertia of a H section.

Now, working as a structural engineer, I understand why engineering mechanics is so important and why we have these classes in the first semesters.

☝️ Disclaimer: We are not yet finished with our engineering mechanics series. There are still other topics than static systems that we haven’t covered. If you continue reading, you’ll find out which topics we’ll talk about the next few weeks.

Overview: How engineering mechanics works together with structural design verifications.

Most of the time, pictures say more than words.

In my opinion, structural engineering verifications can be split up into 3 or 4 parts:

• Loads and load combinations
• Engineering mechanics
• Material properties
• Structural design

Some parameters of “Material properties” can also be added to engineering mechanics or Structural design.

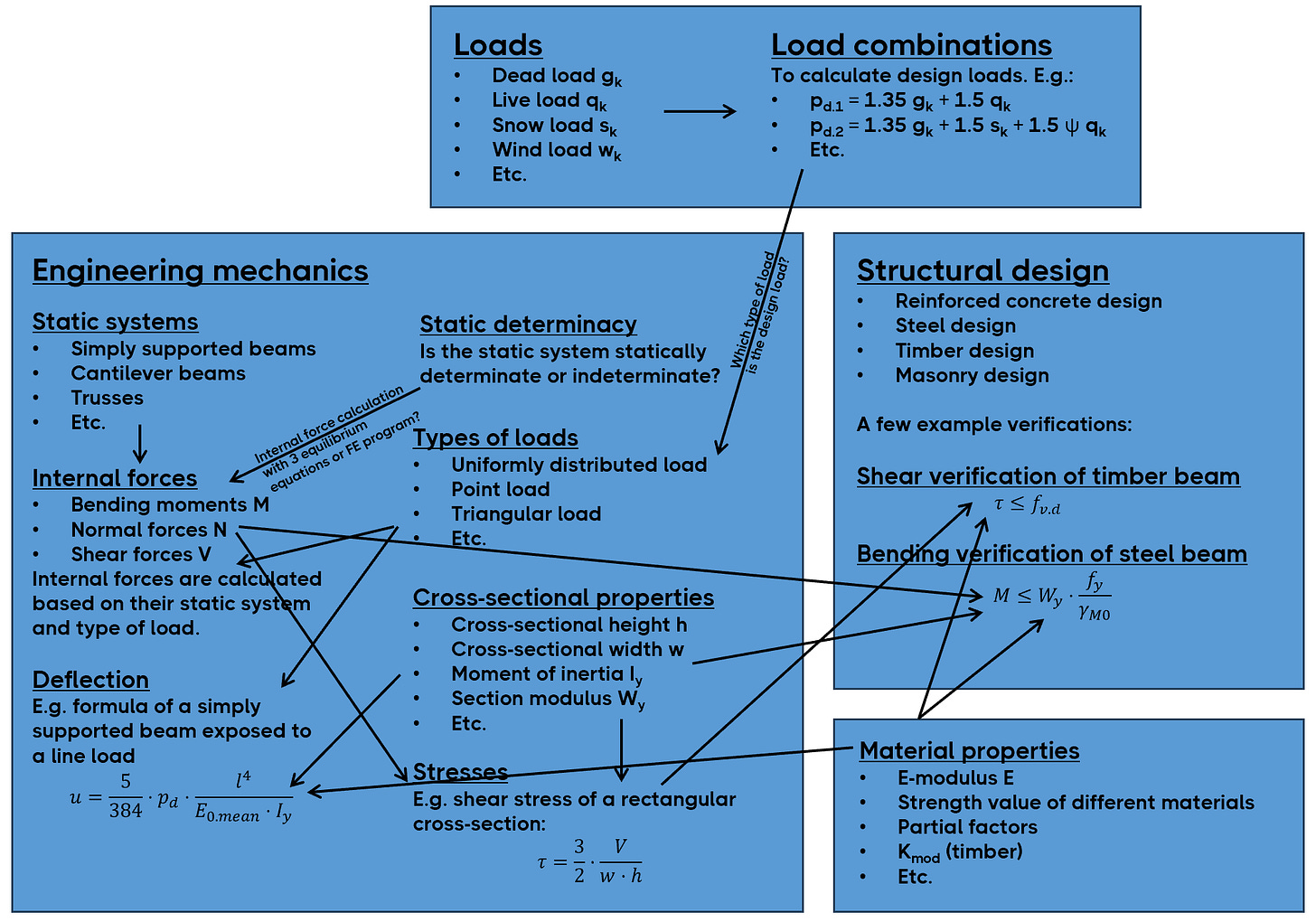

I hope it’s obvious from the picture above how engineering mechanics is connected with structural design. To design a steel beam or a concrete column, we need a lot of parameters from engineering mechanics.

In order to design a timber beam, we first need the characteristic loads acting on the beam, calculate the design loads with load combinations, then we need to calculate the internal forces which depend on the static system. From the internal forces, we then calculate the stresses. To verify the beam, we also need cross-sectional properties like the moment of inertia, width and height.

How much would it help if a mechanics professor showed this image to his students in his first class of the first semester of a Civil Engineering program? 🙂🙂

For me, it would have removed a ton of doubt if what I was studying actually made sense.

So, what’s next?

Within the engineering mechanics series, we’ll cover cross-sectional properties like moment of inertia and section modulus calculation.

Then, we’ll move on to a new series about structural loads (dead, live, wind, snow load, earth pressure, imperfection load, etc.), as this is the other foundation we need before we can tackle structural design.
